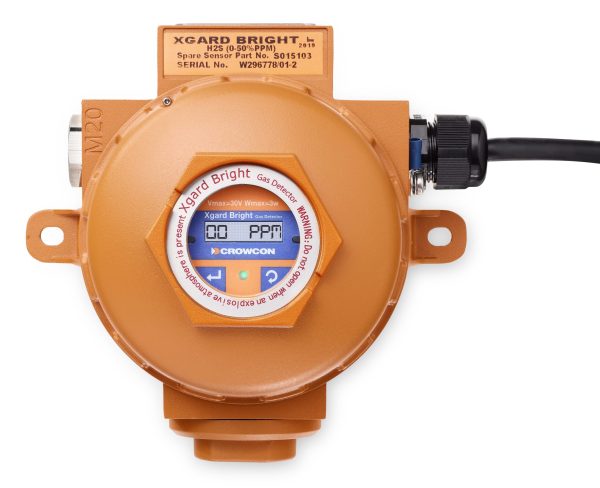

Xgard Bright

Xgard Bright is a versatile platform offering flammable and toxic gas detection and oxygen monitoring, while providing ease of operation and reduced installation costs. Providing analogue 4-20mA and RS-485 Modbus signals as standard, Xgard Bright comes with an Alarm and Fault relay as standard as well as optional HART communications. Lowering the cost of installation, the 4-wire addressable implementation drastically reduces cabling requirements. The large OLED display allows users to easily work with Xgard Bright during install, calibration, and routine maintenance without the need to open the housing. Comes with Molecular Property Spectrometer Technology (MPS) sensor option for calibration-free detection of flammables.



This flameproof (Exd) detector is housed within our high-grade aluminium alloy or 316 stainless steel enclosure. Certifications include gas and dust approvals for ATEX and IECEX with UL gas certification in progress.

Meet the next generation of flammable gas detection

The Xgard Bright is now available with MPS (Molecular Property Spectrometer™) technology

  • Sensor Poisoning is solved
  • Zero calibration for 5 years
  • TrueLEL™ multi-gas accuracy
  • Hydrogen ready

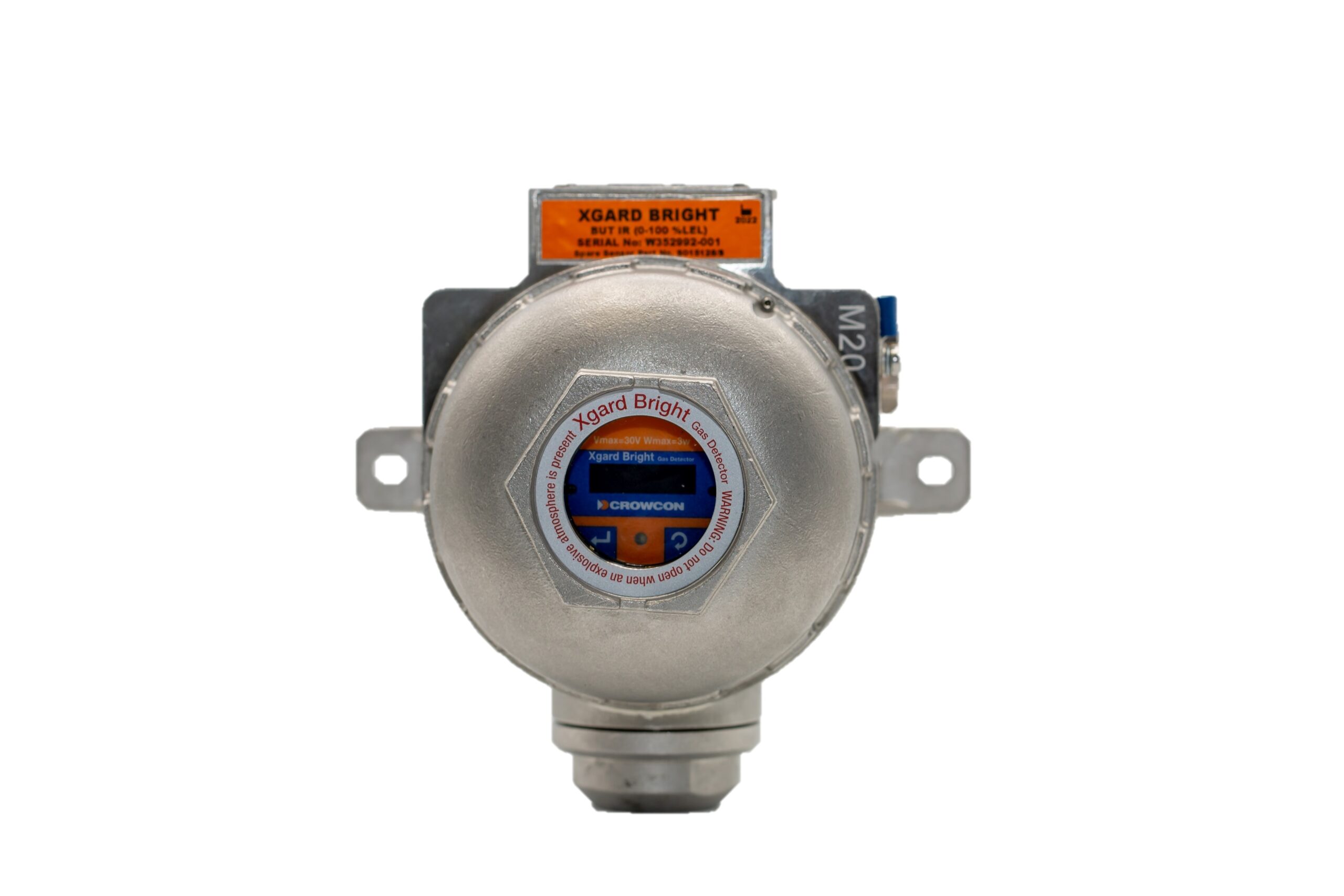

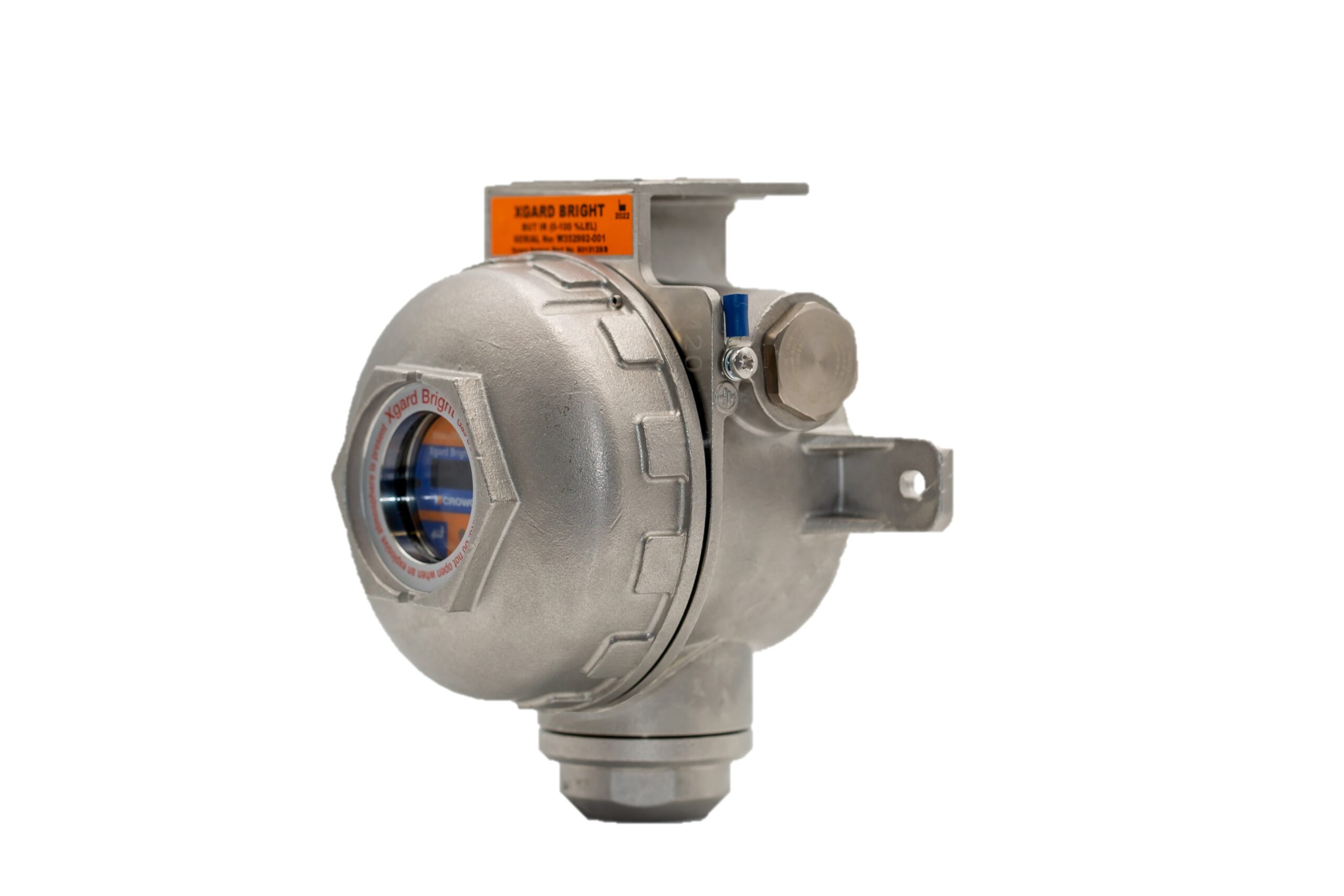

  • Available in both high-grade aluminium alloy or 316 stainless steel
  • Flammable and toxic gas detection and oxygen monitoring – Reducing training requirements across sites
  • Choice of M20 or ½”NPT connection – Supports multiple site requirements
  • Low power requirement (~3W max) – Reducing site-wide power consumption
  • IP65 or IP66 rating (with weatherproof cap) – Allows use in areas subject to regular wash downs or in exposed environments

Ease of installation and operation:

  • Addressable – Drastically reduces the amount of cabling needed for multi-point installations
  • Local display – Delivers gas level indication, status and supports maintenance routines
  • Non-intrusive calibration – Removes the need to open the cover for calibration
  • Plug in type terminal blocks – Making wiring quick and easy reducing installation costs

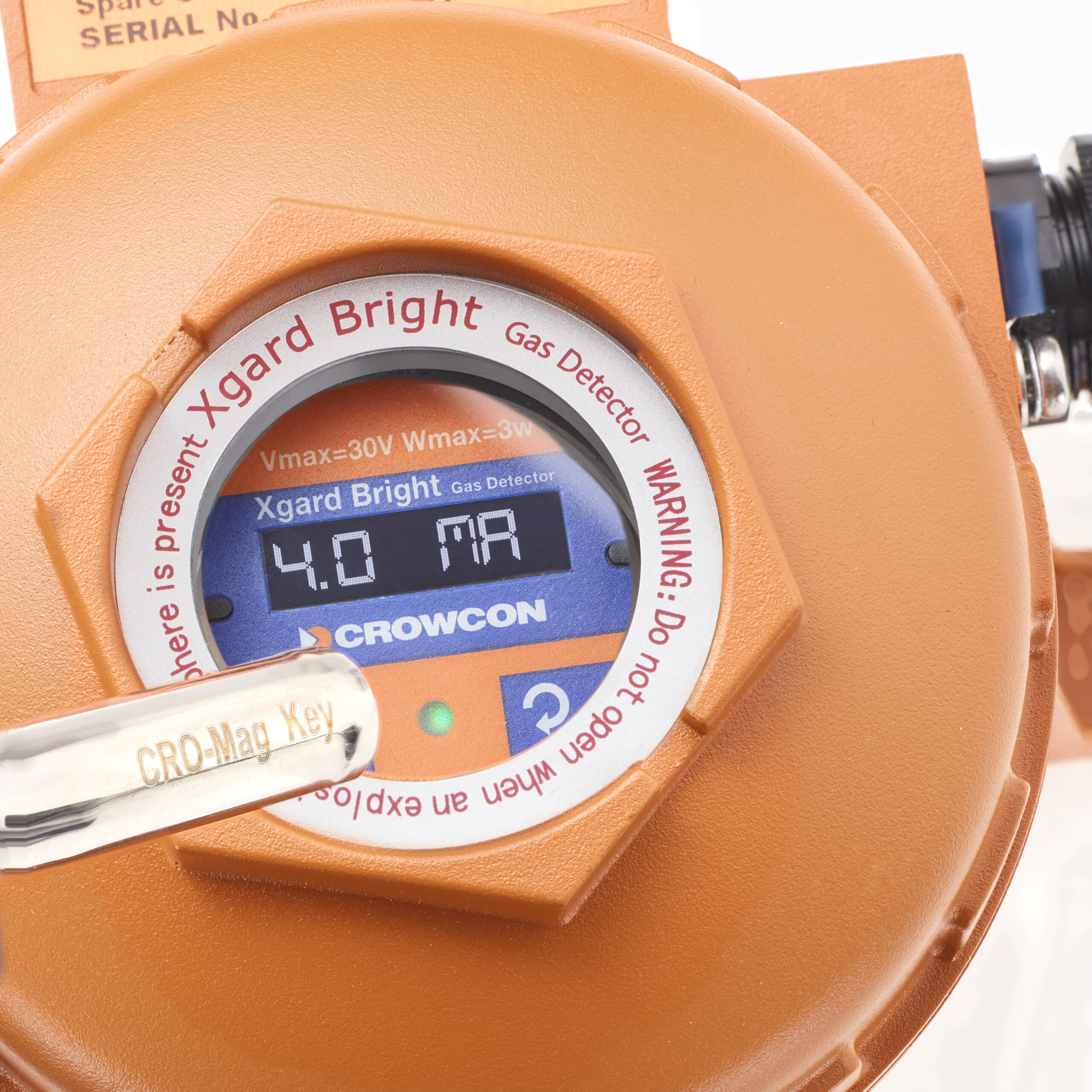

  • Configuration via magnetic key – Reducing the amount of time operators spend in a hazardous area
